2026  Kearney Trailers  GTDWLPDT  8 ft 6 in X 32 ft - 66866

6950 lbs

8 ft 6 in

32 ft

20,000lb

12 in x 19# i - beam, "low-profile" pierced frame * w/ approximate 34 in bed height, & 5 in channel side caps **35 ft & over standard w/ bridge frame truss

Equalizer w/ heavy duty 5 leave slipper spring system

New ST235/80/R/16 in radials load range "E" 10-ply

Jacks: Two - 12k spring loaded drop leg jacks | Plug: 7 - way molded harness / grounded to frame | Tor-k-ontrol: "torque-tube" flex control standard on all models | Neck riser: 12 in x 19# i - beam | Neck: 34 ft & under 10 in channel/ 35 ft & over 12 in i-beam | Storage: toolbox w/ lockable lid between gn risers | Tie downs: 3 in stake pockets w/ rub rail welded to outside and * pipe-spools support between every stake pocket | Spare mount: securely mounted inside of neck (mount only) | Bed: 102 in wide and (length includes a 5' dove tail) *note*: 102 in wide bed may not be legal in some states | Back bumper: 3 in x 8 in rectangular tubing bumper, for light protection | Stickers: all warning & safety/dot & reflective kearney logos | Ext prepping: 2 stage degreasing and acid phosphate wash w/rust- * inhibitor to ensure maximum paint adhesion | Ext. finish: painted with a newly innovated, durable high gloss * acrylic polyurethane full two-component finish | Undercoating: completely coated w/ a durable protective finish | Trim: standard "white" or "black" pin striping

Two - spring loaded, double pivot hinged flip over

34 ft & under 2 5/16 in 25k coupler adj. w/ pin ** 35 ft & over 2 5/16 in 30k sq coupler adjustable

Two - electric brakes w/break away & charger

3 in channel iron / on 18 in centers

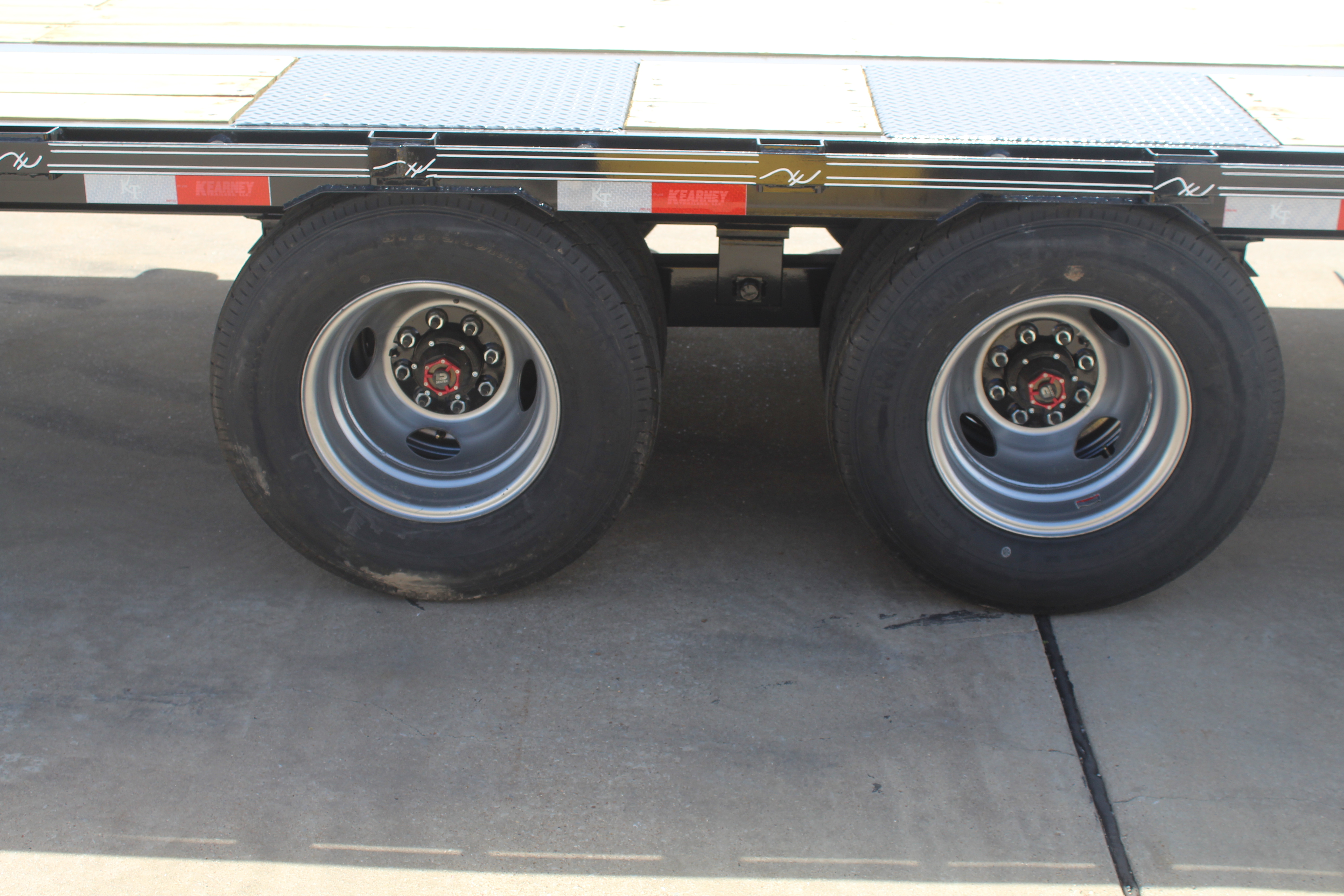

Two - 10k axles w/ oil bath hubs

8 - Hole powder coated silver duals

3/8 in chain w/ safety hooks

Pressure treated/ 2 in x 8 in pine,double screwed/per/run

All "led" w/ new 3/4 in led pin style clearance

A limited two year kearney guarantee
