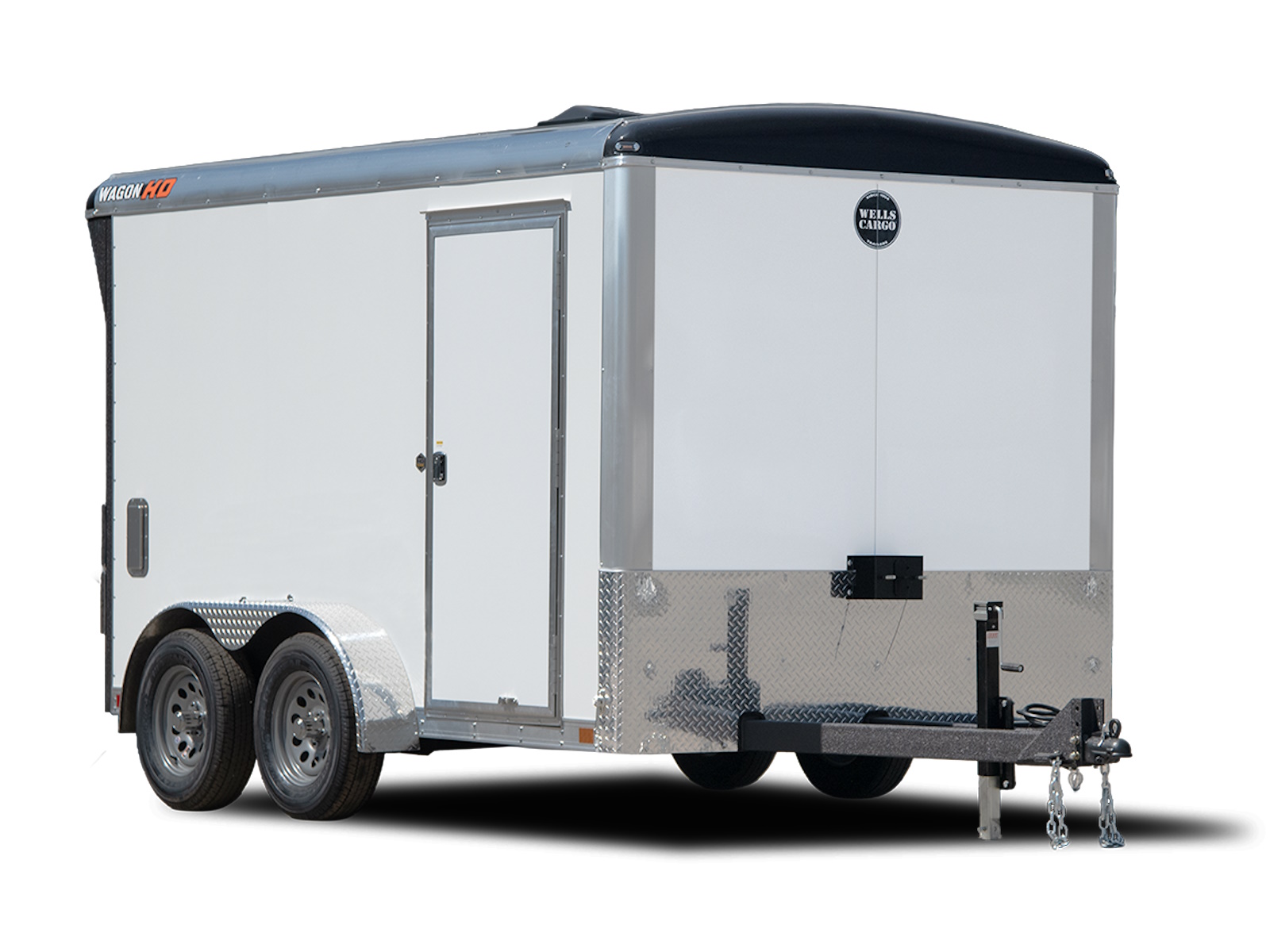

2027 Wells Cargo Wagon HD (7 ft wide) WHD712T2
At Home or On The Job
Day after day, job after job, year after year, the Wagon HD proves that it's built to go the distance... and then some! Go ahead. Put us to the test. We're confident you won't find a longer lasting trailer than a Wells Cargo Wagon HD. You can achieve that kind of durability when you focus on building a better trailer, rather than cutting corners. Everyday is an ongoing challenge to improve our manufacturing processes assuring you get the most trailer for your hard earned dollar. We've been doing it for 65 years and we're not about to change now. After all, striving for quality is a hard habit to break.
Features May Include:

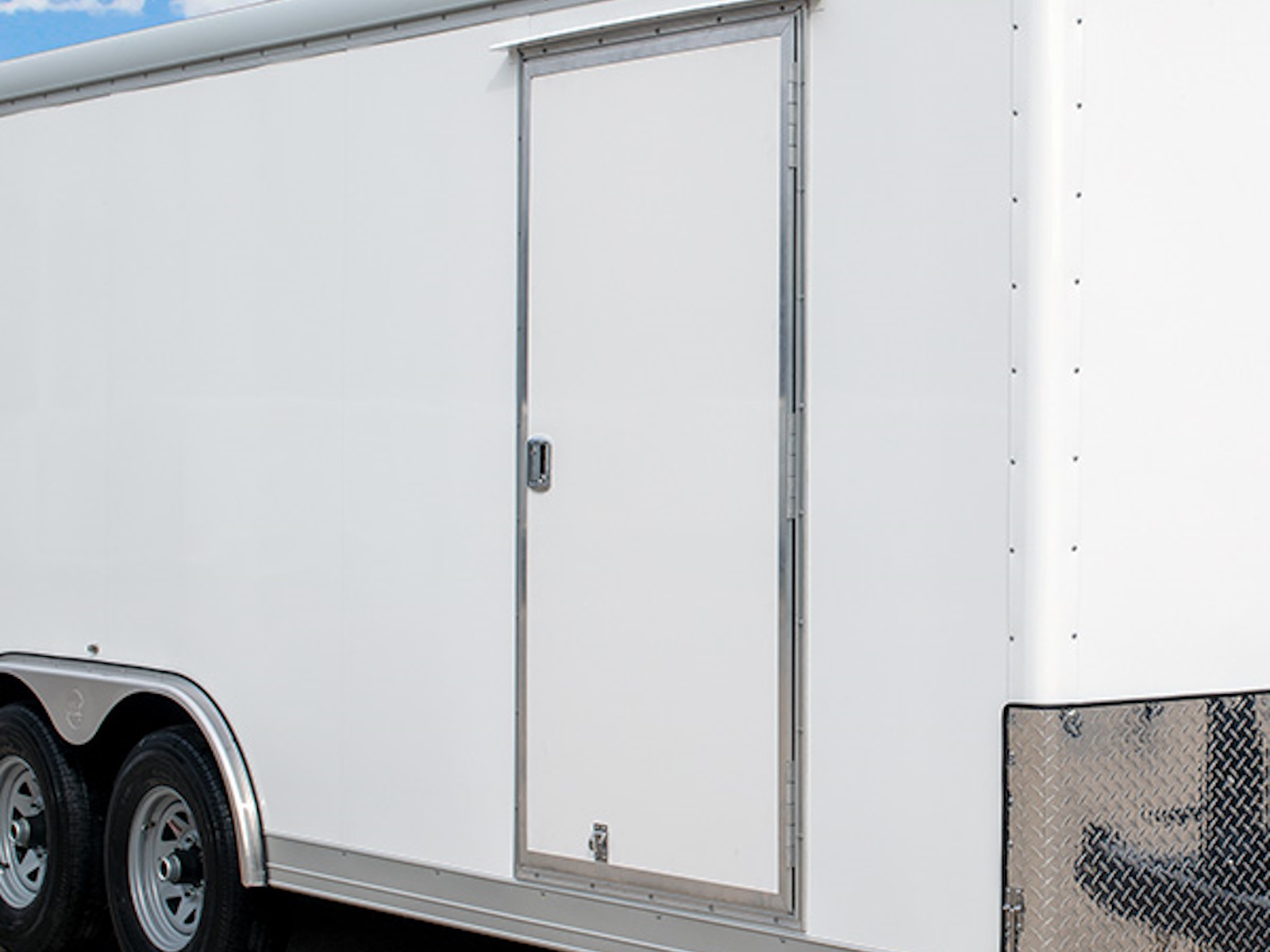

- 36"W Side Entry Door with Flush Lock & Dead Bolt (1-1/2" Core)

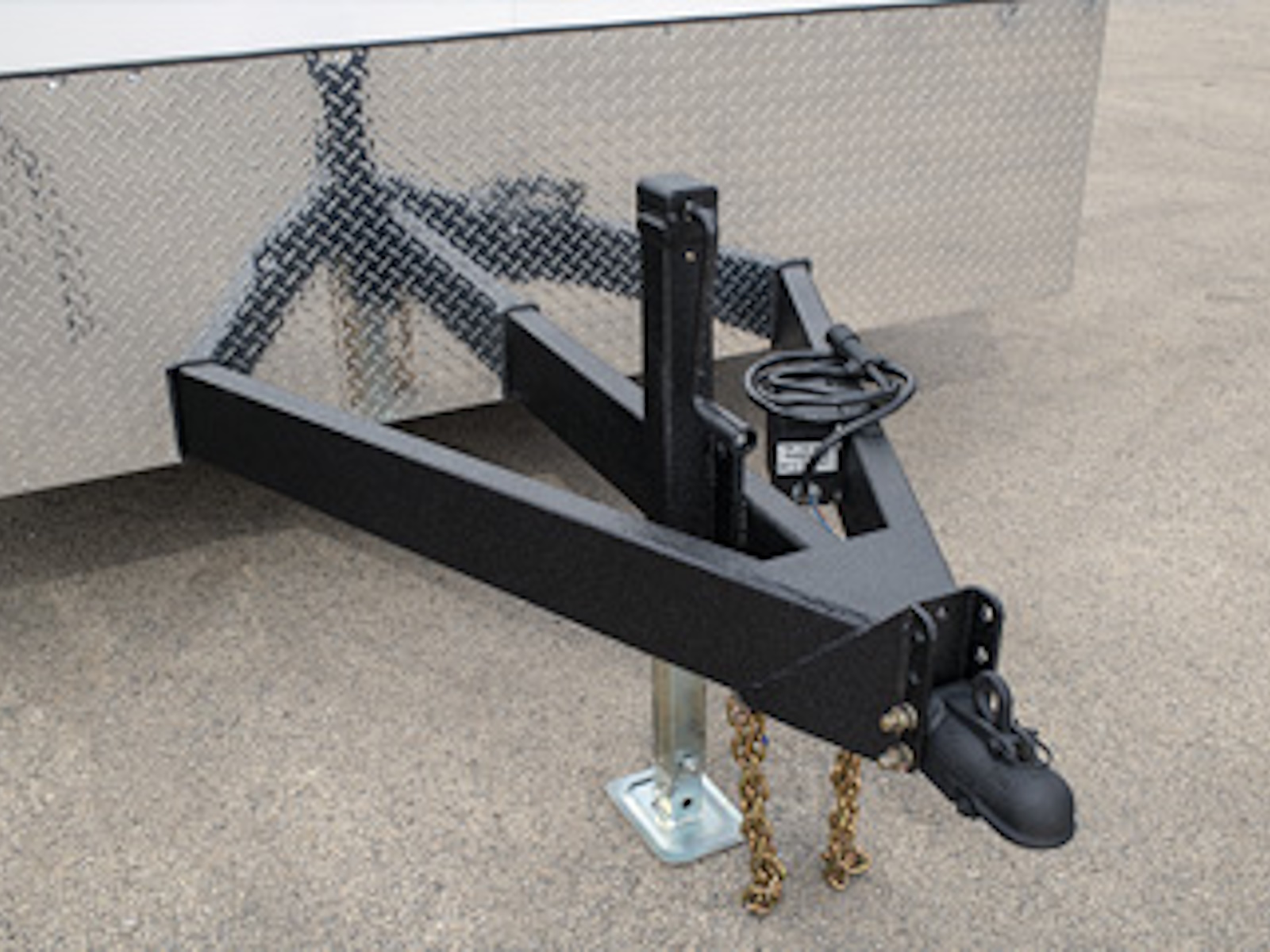

- Square Tube 8K Dropleg Sidewide Jack with Footplate (Bolt-On/Replaceable)

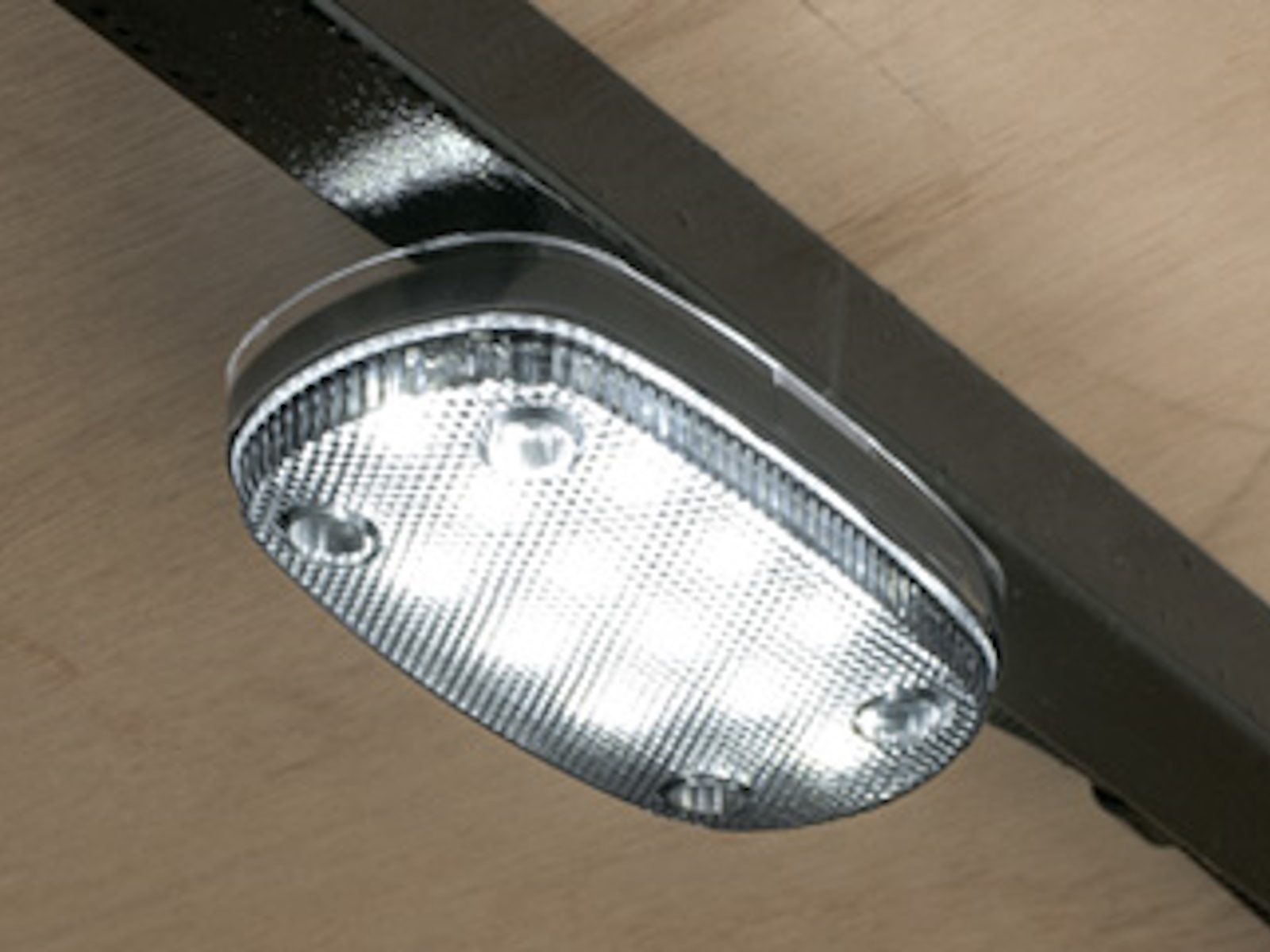

- 12V High Output LED Dome Lights (800 lumens)
- Safety Chains with Clevis Hook and Latch
- Entire Chassis Undercoated
- 1-Piece Aluminum Roof
- 3/4" PlexCore High-Performance Interior Decking

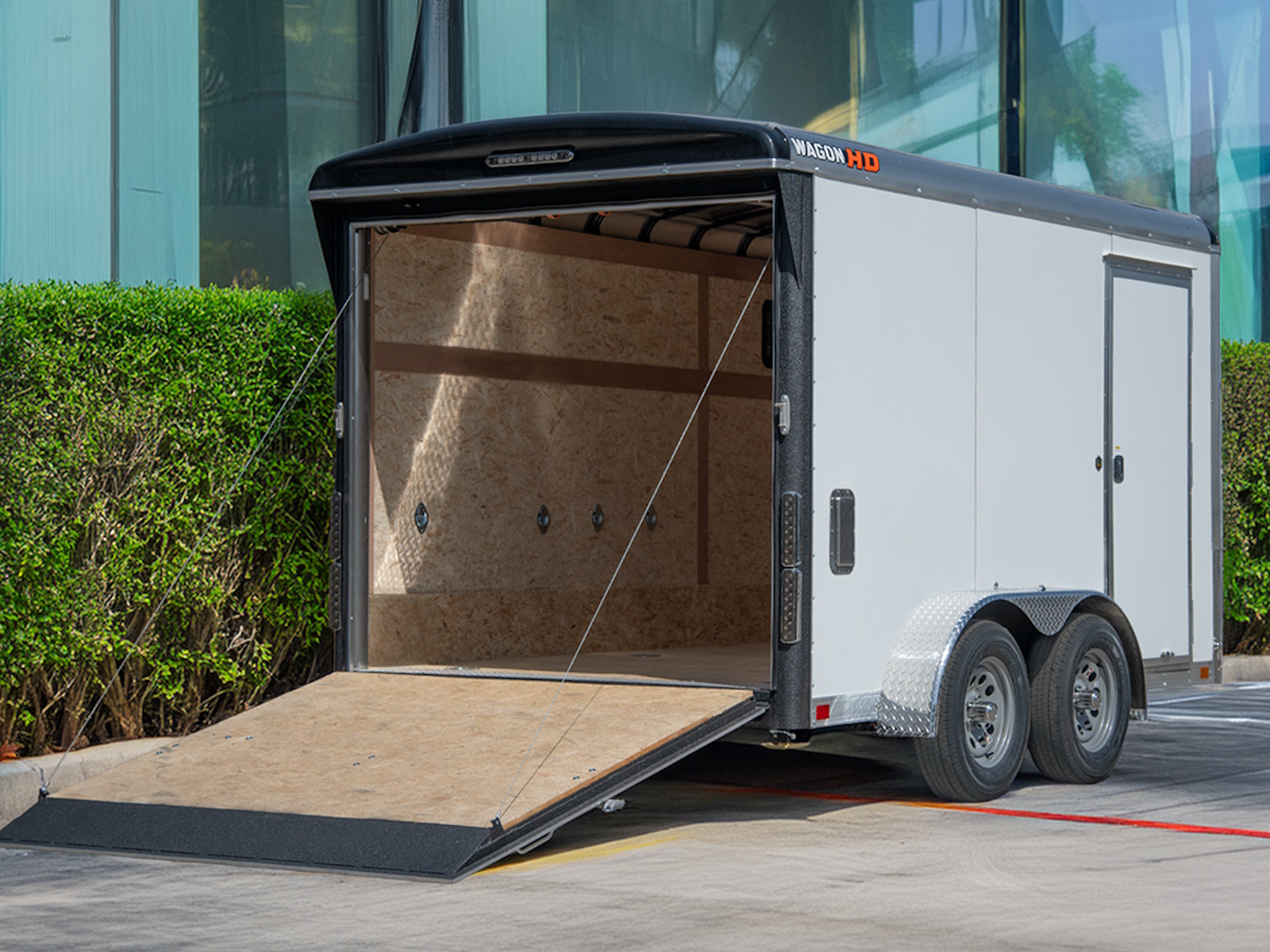

- Rear Ramp Door with Spring Assist
- 24" ATP Stoneguard
- 3/8" PlexCore High-Performance Interior Sidewalls
- ATP Fenders
- Flow-Thru Sidewall Vents
- 3-Year Limited Warranty
- 7-Way 12V End Connector
- Goodyear® Endurance Radial Tires
- 16" OC Tube Vertical Posts
- 16" OC Tube Roof Bows
- Steel Tube Main Rails
- 16" OC C-Channel Crossmembers (Full Height of Main Rail)
- Dust-Proof Sidewalls

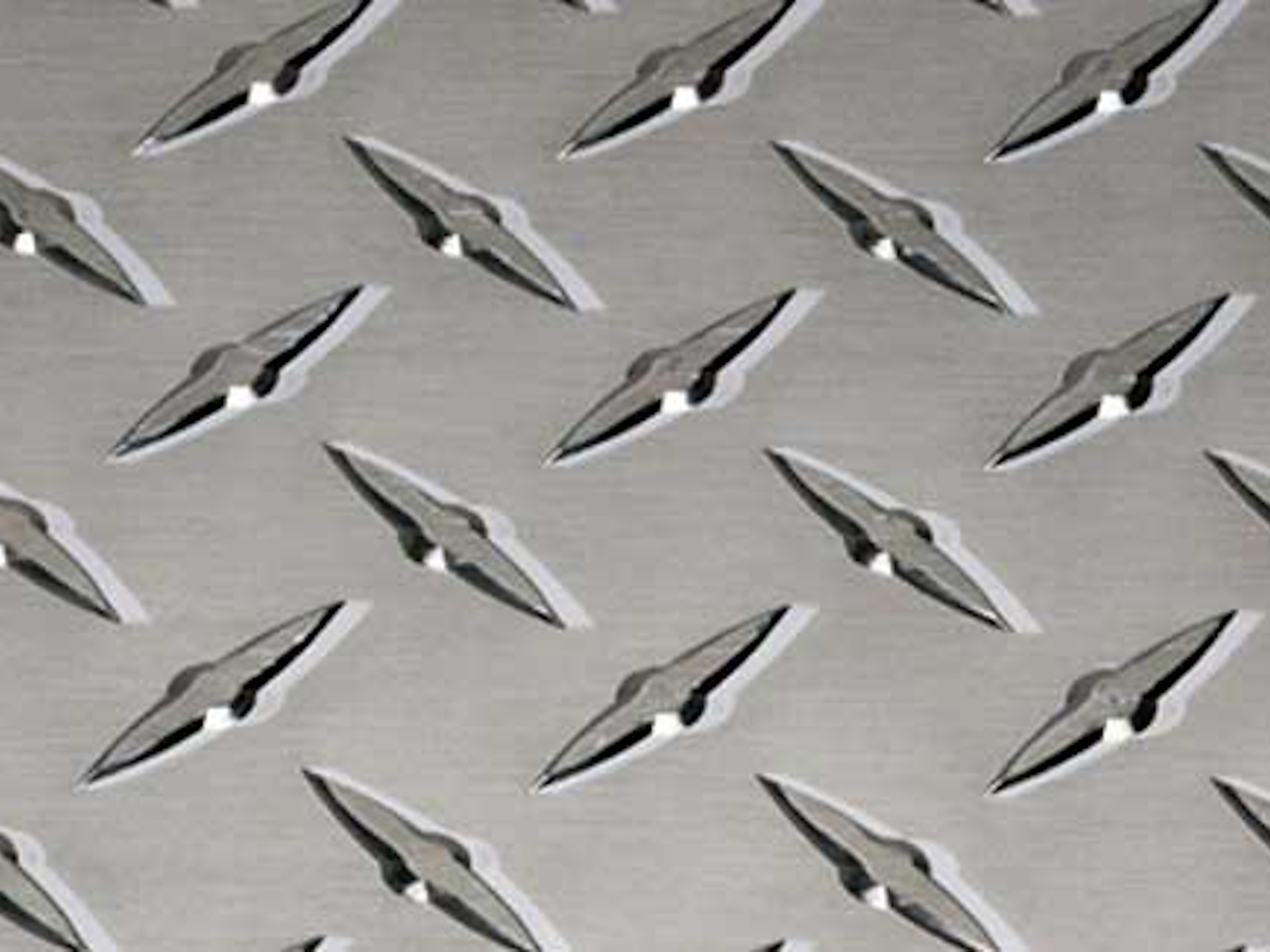

- ArmorTech on A-Frame, Rear Hoop and Interior Wheel Boxes
- Adjustable Height 2-5/16" Wallace Forge® Cast Coupler (Made in the USA)
- Dexter® Torsion Axles with E-Z Lube® Hubs
- 4-Wheel Electric Brakes with Breakaway Battery
- Radius Roof with Silver Fiberglass End Caps — Front & Rear
- .080 Extruded Aluminum Roof Cove with Drip Rail
- 4-1/4"H Extruded Aluminum Bottom Trim
- All Aluminum "Anti-Rack" Cam Lock with Stainless Steel Hasp
- LED Wraparound Tail Lights with Built-In Side Marker Light (Wells Cargo Exclusive)
- LED PC/PC2 Rated Clear Lens Clearance/Marker Lights
- Rear ID Bar with Built-In Loading Light
- Bonded .080 ACP Exterior (Aluminum Composite Panels)
Colors
- Victory Red
- Charcoal Gray
- Black
- Polar White
- Indigo Blue
- Champagne Beige
- Silverfrost
- Pewter
- Arctic Green
- Orange
- Yellow
Info
Industry
Trailer
Make
Wells Cargo
Model
Wagon HD ( 7 ft wide) WHD712T2
Trim
Base
Year
2027
MSRP
N/A
Category
Enclosed Cargo Trailer
Subcategory
Enclosed Cargo Trailer
Specs
Crossmembers
16 in OC C-Channel Crossmembers (Full Height of Main Rail)
Coupler
Adjustable Height 2-5/16 in Wallace Forge® Cast Coupler (Made in the USA)
Length
Body: 12 in 0 in | Overall: 16 ft 4 in
Width
Body: 7 ft 0 in | Overall: 8 ft 6 in
Height
Overall: 8 ft 2 in | interior: 6 ft 8 in | Platform: 19 in
Enclosed Length
Interior: 11 ft 9 in
Enclosed Width
Interior: 6 ft 9 in
Axles
Quantity: Tandem | Type: 10-Degree Up
Brakes
4-Wheel Electric Drum
Suspension
Torflex®
Tires
ST205/75R15
Notes
Load Range: D | 12V Trailer End Connector: 7-way
Hitch Size
2 5/16 in
Hitch Height
To Top Of Ball: 17 in to 21 in
Dry Weight
2,115 lb.
Hitch Weight
10-15%
GVWR
7,000 lb.
Max Load
4,885 lb.
Gate/Door
Double Doors | Width: 76 in | Height: 69 in
